Commercial Sliding Window

Summary

Commercial

Series 452

Commercial Sliding Window

This amazing sliding window is a revolution in elevated window design. Improved strength, security and ease of use give you the ultimate flexibility in design.

Thank you for reading this post, don't forget to subscribe!
  • The 17mm-thick sliding window sashes deliver better strength and comfort than standard window sashes, plus it incorporates a unique two-piece sash, making it easy to install on both the inside or outside – great when it comes to replacing or reglazing!
  • Available in a large variety of sliding window combinations, with and without highlights/lowlights.
  • Flyscreens can also be fitted to the frame without the need for unsightly rivets, metal clips or turnbuckles.
  • Choose from a variety of latches and locks to suit your styling or security requirements. For more ventilation, you can even lock your sliding window in a partly open position.

Product Details

Brochure
Care & Maintenance(For your Windows & Doors).pdf

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Elevateu2122(Aluminium Systems).pdf

Elevateu2122(Aluminium Systems).pdf

Hardware(For Windows & Doors).pdf

Hardware(For Windows & Doors).pdf

Cancel
Download
WERS Ratings WERS Ratings
View in SpecifyAWS

Product Size

  • Maximum Panel Height* (mm)

    1500

  • Maximum Panel Width* (mm)

    900

  • Maximum Glass Thickness (mm)

    ≤ 10.5mm (20mm with Adaptor)

*Maximum Panel Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range

    3.7-6.6

  • SHGC Range

    0.21-0.70

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

  • Series 452 Sliding windows incorporate 17mm thick sliding window sashes fitted into CentreGLAZE™ framing using a custom head and sill and an inlay adapter.
  • This sliding window features a double sash design with the external sash fixed.
  • Both fixed and opening sashes can be installed, replaced and/or reglazed from inside the building. This could be an important feature in elevated situations.
  • There is a large variety of sliding window combinations possible (SF, FS, SFS or FSSF) with and without highlights/lowlights.
  • Sliding sashes can be fitted with a variety of latches and locks including centre multi-point lock.
  • The ventilation lock allows the opening sliding window sash to be key locked in the closed and partly open (ventilation) position.
  • Flyscreens can be clipped into the frame without unsightly rivets, metal clips or turnbuckles.

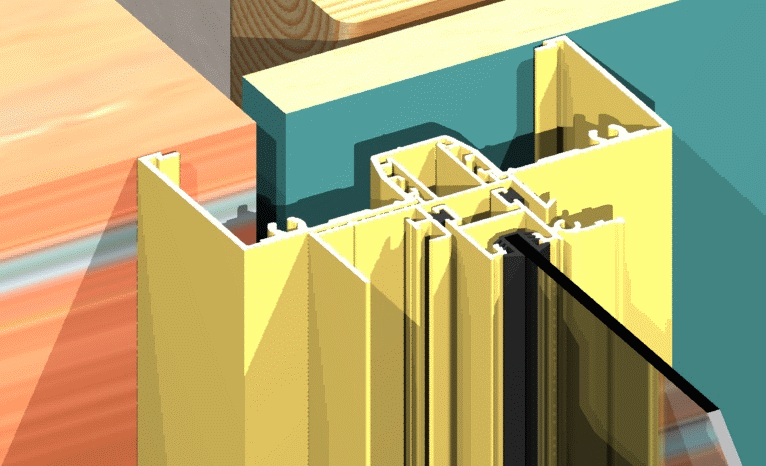

Jambs

Jambs

We offer a variety of jambs with integrated nailing fin / weather bar.

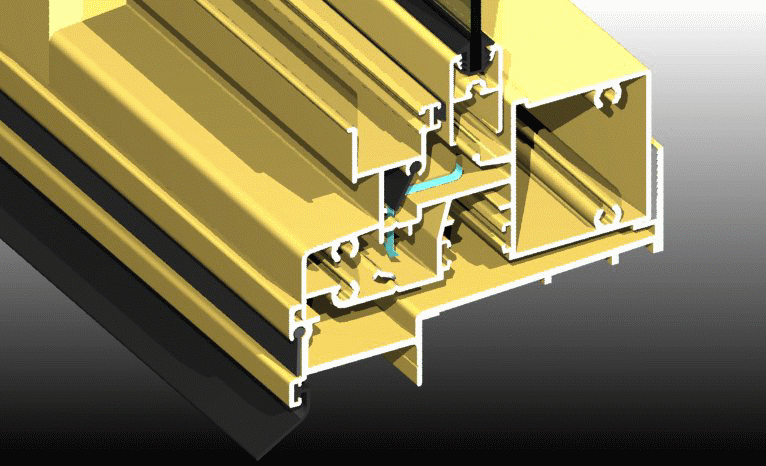

Sills

Sills

Dedicated commercial sills with unique drainage system and custom nailing fin sub-sill.

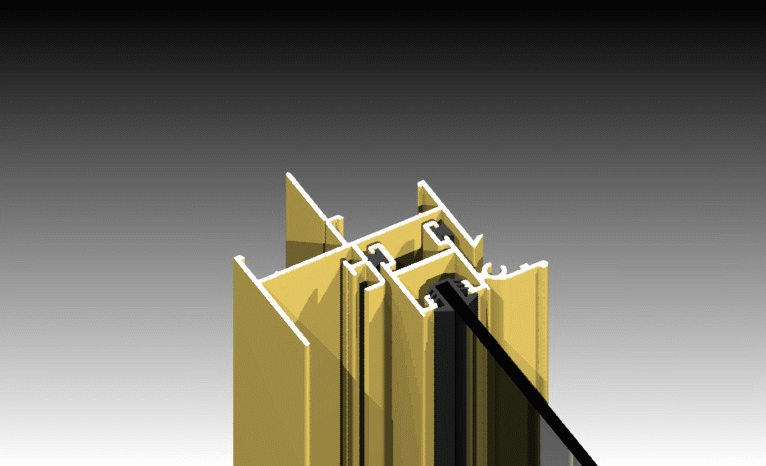

Frame

Frame

Series 452 frame compared to conventional residential frame. Incorporates sashes from Series 504.

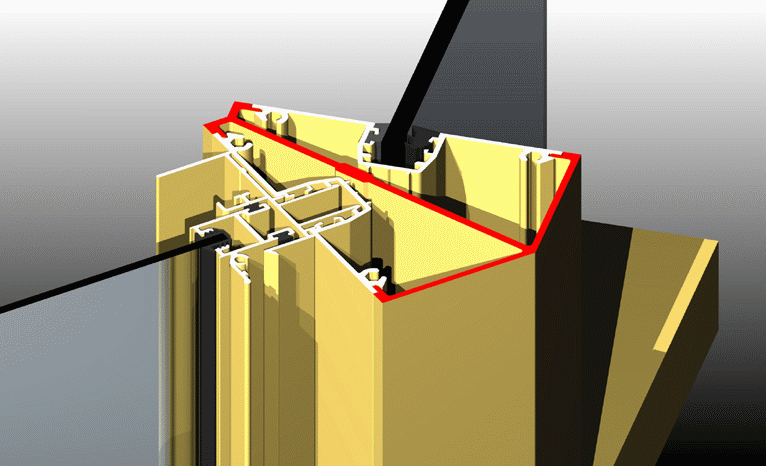

Coupling

Coupling

The 452 can be coupled and adapted in various junction details.

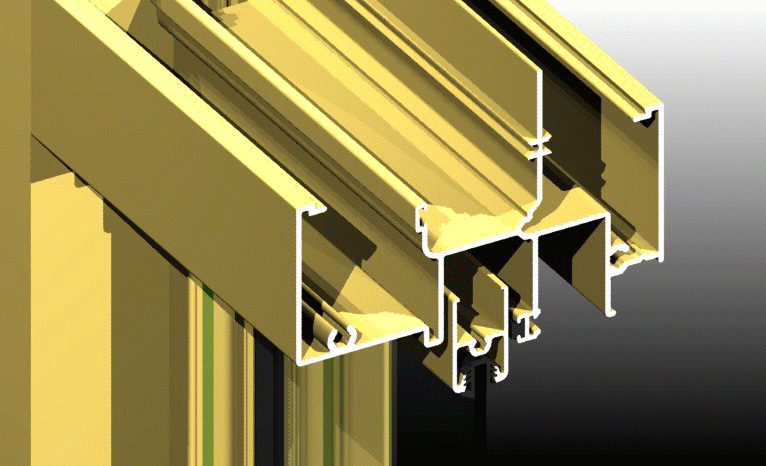

Transom Drainage

Transom Drainage

Highlights transoms over sliders are sealed and drained to matched the overall window performance.

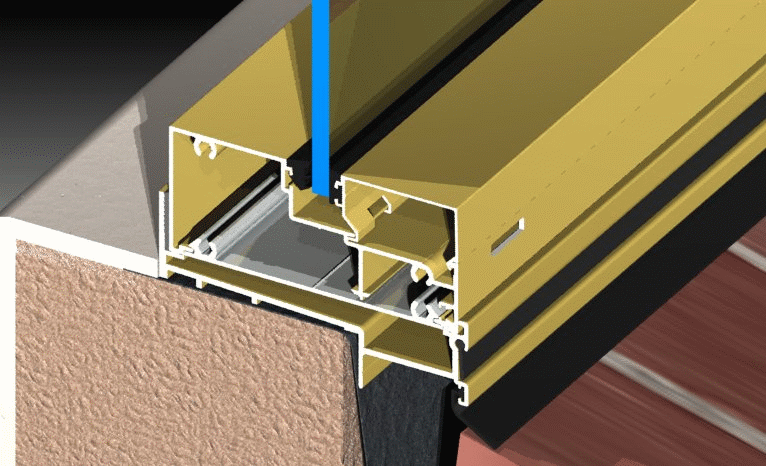

Fixed Lowlight Sill

Fixed Lowlight Sill

Fixed lowlights can be single or double glazed.

Compatible Hardware​

Sliding Window Lock

ANDO™

Sliding Window Lock

Complementary Products​​

AWS Trickle Vent

AWS Trickle Vent

Project Features

feature_122_Hero_banner

Church House

  • Commercial
feature_161_hero_banner

Fairywren Close

  • Residential
feature_46_hero

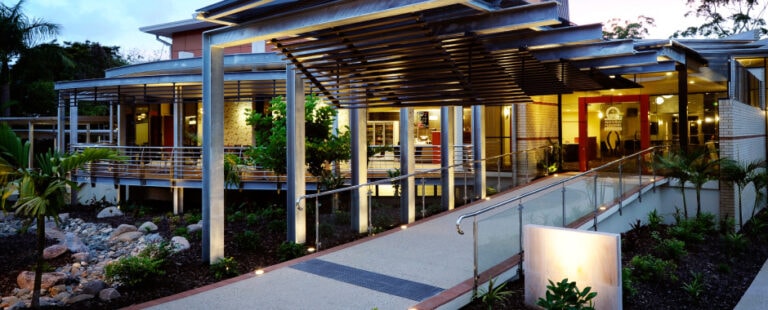

Buderims Inspiration
