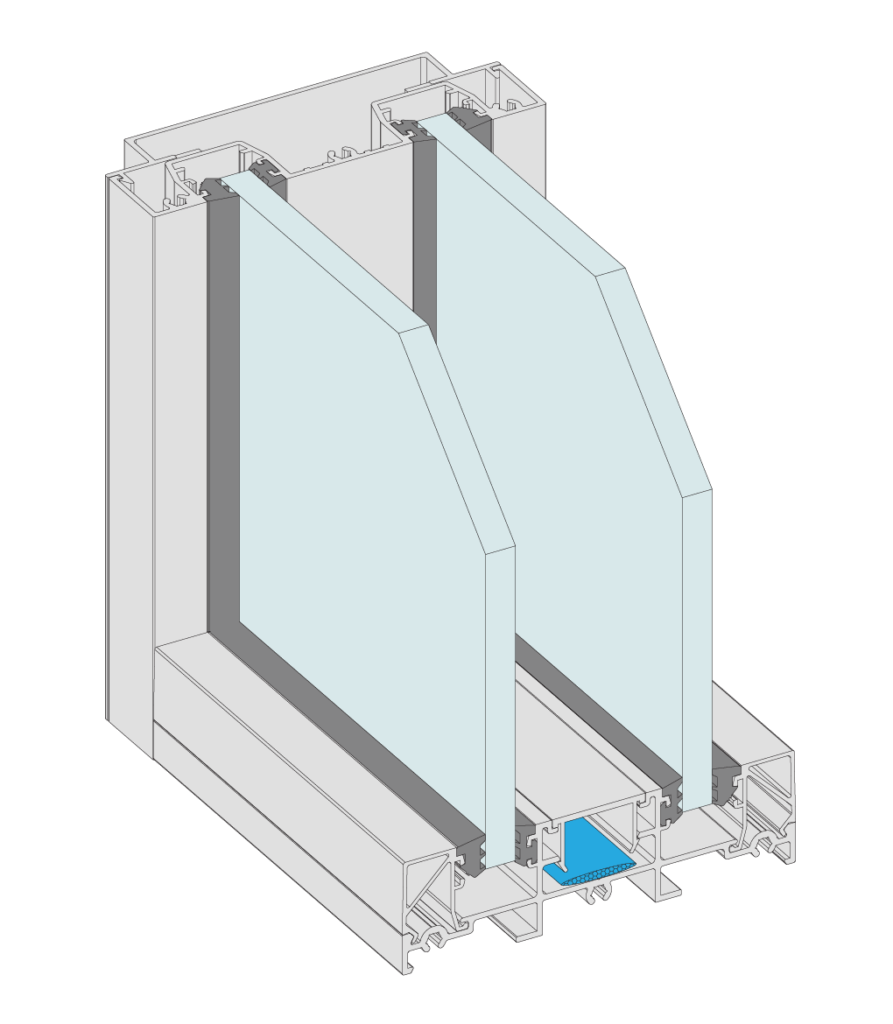

The Series 105 Partition framing system has been designed to be single or double glazed.
Thank you for reading this post, don't forget to subscribe!- The wide glazing pocket (16.50mm) will accept glass up to 12.50mm thick with 8mm bite.
- The 105mm wide frame will give us about 44mm gap between glass, varies slightly depending on the glass thickness.
- Three glazing bead options: 90 degree square bead, 45 degree splayed bead, 25 degree splayed bead.
- The splayed beads shed dust – ideal for projects where dust collection platforms are a problem.
- The silica gel crystals are fitted under the snap-on cover.
- This cover is designed to be removed in the future when
- crystals need to be replaced.
- Slim, wide or shadow line perimeter frame options.
- Hinge doors can be swung off mullions.
Not designed for external weather resisting applications.
