Thermally Broken 100mm FrontGLAZE™ Framing

Summary

Commercial

Series 824

Thermally Broken 100mm FrontGLAZE™ Framing

The forefront of energy efficient, contemporary design for stunning aesthetic appeal and superior insulating performance. Your home will look and feel beautiful inside and out.

Thank you for reading this post, don't forget to subscribe!
  • The shallower sill provides a flush, modern exterior finish, and the smaller sill means less cleaning all year round.
  • Perfect for both residential and commercial properties, this product incorporates energy-efficient ThermalHEART™ technology, so you stay cool in summer, warm in winter, reduce your bills and all without compromising style or space.
  • Used in conjunction with double glazing, FrontGLAZE™ Framing delivers up to 33% more efficiency than standard double-glazed windows.
  • Designed to fit multiple glass thicknesses, these frames allow easy and compliant installation.

Product Details

Brochure
Care & Maintenance(For your Windows & Doors).pdf

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Hardware(For Windows & Doors).pdf

Hardware(For Windows & Doors).pdf

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel
Download
WERS Ratings WERS Ratings
View in SpecifyAWS

Product Size

  • Maximum Panel Height* (mm)

    Various

  • Maximum Panel Width* (mm)

    Various

  • Maximum Glass Thickness (mm)

    ≤ 28

*Maximum Panel Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range

    1.7-3.1

  • SHGC Range

    0.17-0.67

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Energy
Efficient Design Solution

Key Features

  • Series 824 is an innovative thermally broken aluminium FrontGLAZE™ framing system measuring 100mm x 60mm.
  • Incorporating ThermalHEART™ technology, Series 824 delivers excellent thermal performance and is ideal for commercial and high-end residential applications where minimising heat or cold transfer is desired.
  • To enable excellent thermal performance to be achieved, a “Thermal Break” is incorporated which separates the inside and outside elements of the frame providing an insulator to minimise the transfer of heat or cold between the elements.
  • This insulating strip is manufactured from polyamide and delivers the same structural properties as aluminium to ensure the integrity of the system is maintained.
  • Series 824 FrontGLAZE™ framing has been designed specifically to accept 24mm Insulating Glass Units (IGUs).
  • The 28mm deep glazing pocket positioned at the front of the framing is designed to accept thick heavy IGUs and allows glass to be installed easily with room to spare (catering for glass manufacturing and installation tolerances).
  • This deep glazing pocket provides a 12mm bight as required by the IGU manufacturers and ensures compliance with glass warranties.
  • Reinforced tall glazing bead at sill tolerates high negative wind loads.
  • Available as internally glazed or externally glazed (bead on the outside).
  • True captive glazing wedge allows reglazing from inside – ideal in elevated applications. The captive wedge also offers increased security.
  • Glazing wedges are recessed into the framing for a clean aesthetic appearance.
  • Wide range of thermally broken sub-frames to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
  • Internal and external swing hinged door thresholds are also thermally broken.

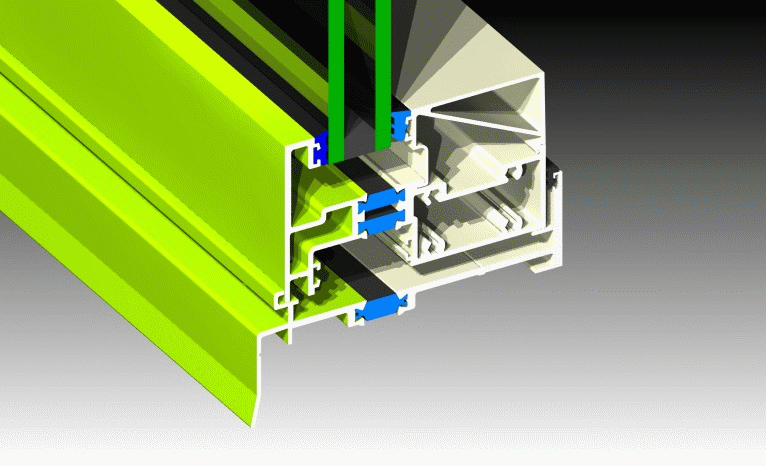

Sub-Sill

Sub-Sill

Sub-sill designed to support heavy double glazed frames and maintain the thermal break.

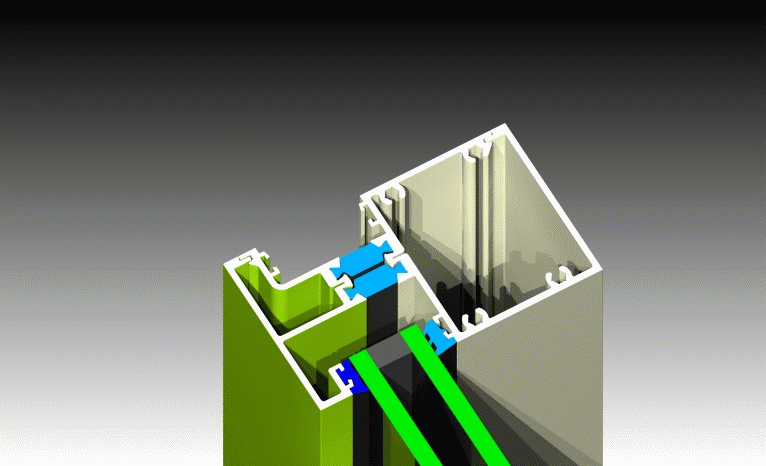

Sub-Jamb

Sub-Jamb

Sub-jamb with pressure bead on the inner face available can make installation easier and cleaner.

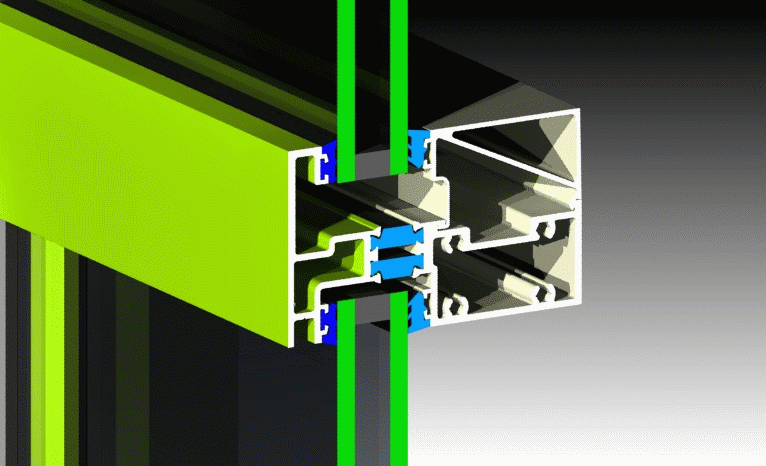

Concealed Drainage

Concealed Drainage

Can be glazed from inside or outside. Concealed drainage holes.

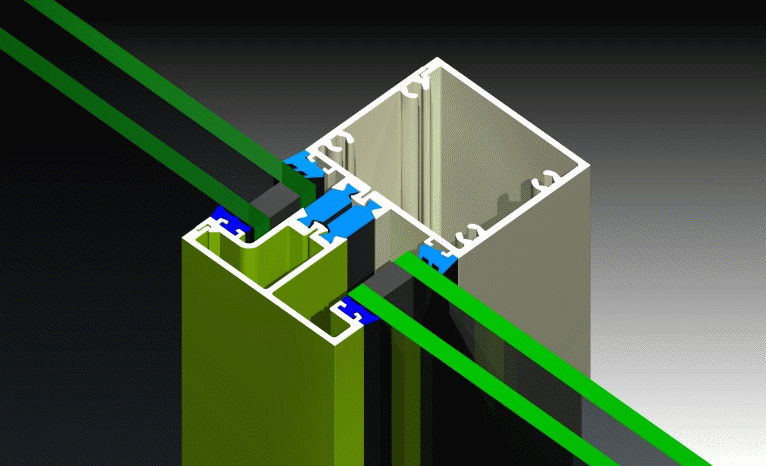

Mullions

Mullions

We offer both snap together and expansion mullions.

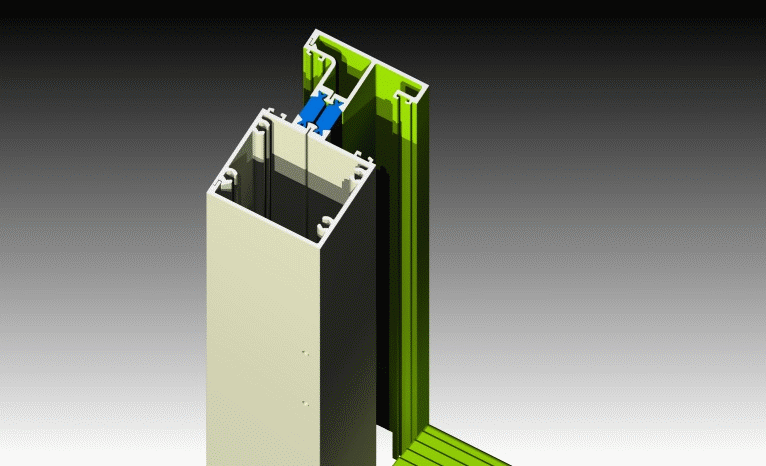

Heavy Duty Hinges

Heavy Duty Hinges

Heavy duty adjustable hinges support heavy door panels. Wide stiles accept wide backset locks.

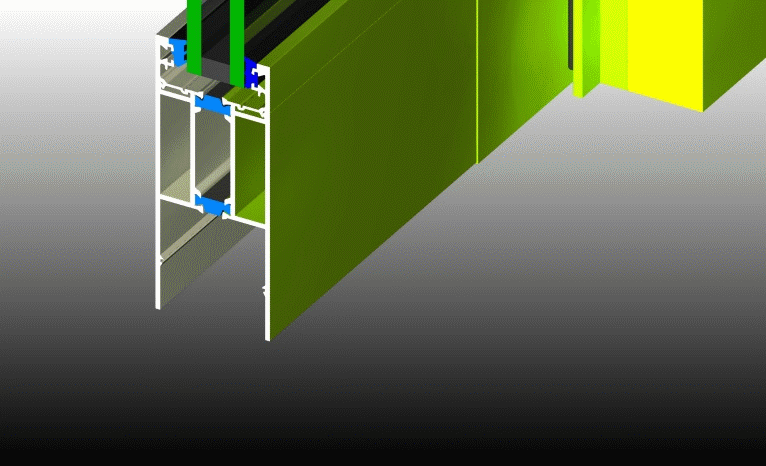

Anti-Blowback Valve

Anti-Blowback Valve

Weather resistant threshold with internal anti-blowback valve to reduce air infiltration.

Compatible Hardware​

Complementary Products​​

AWS Trickle Vent

AWS Trickle Vent

Project Features

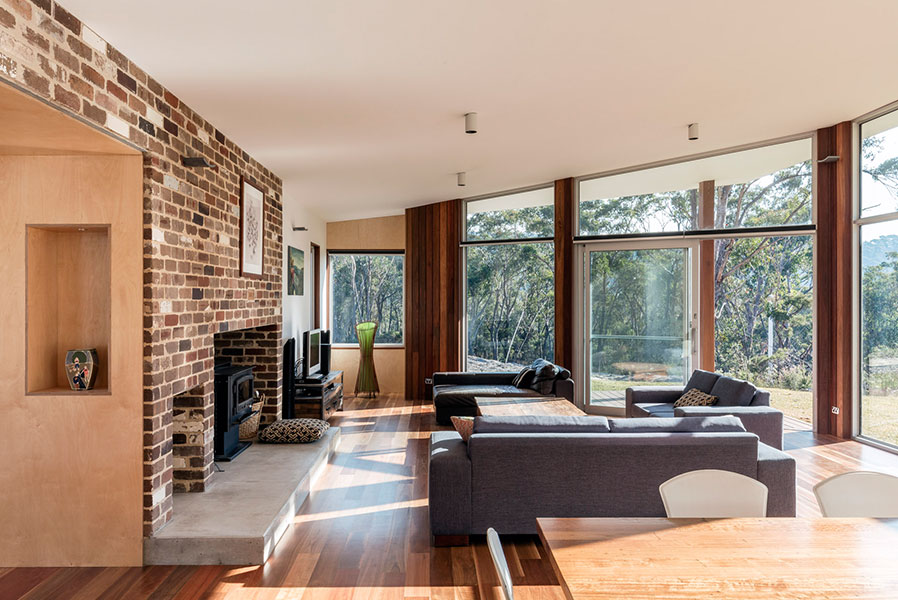

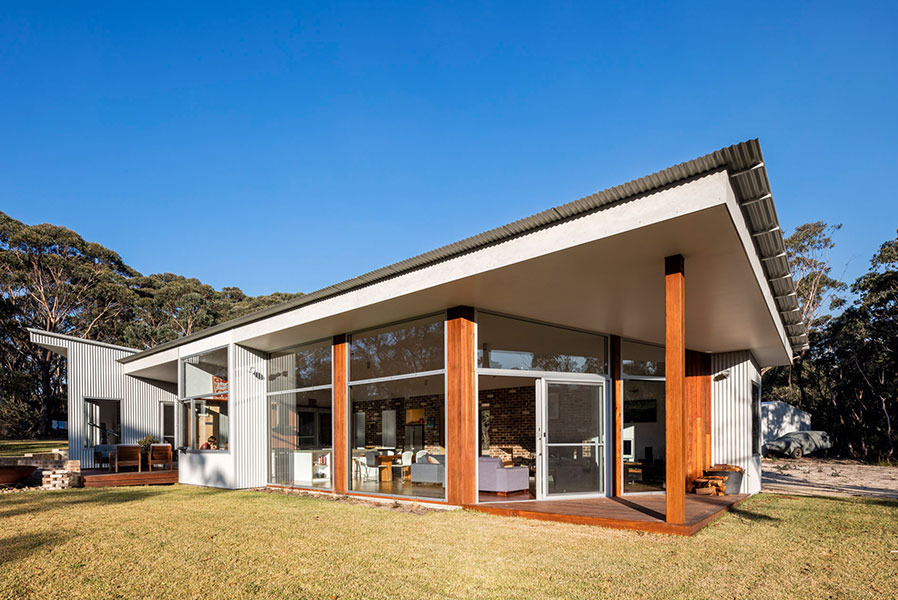

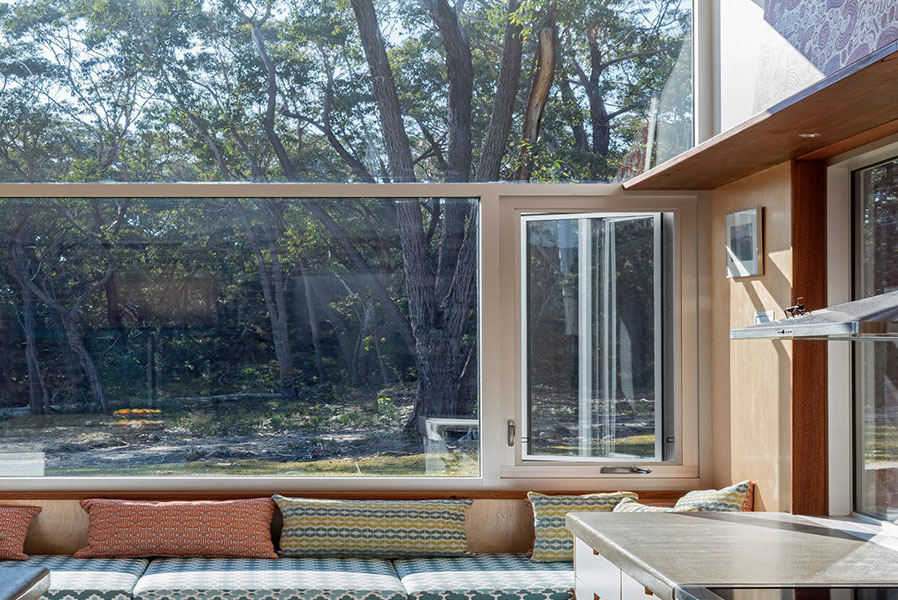

Lyrical Tranquility

  • Home Inspo, Residential
feature-121-hero_banner

Shipley House

  • Bushfire, Residential
Dangerfield-Hero

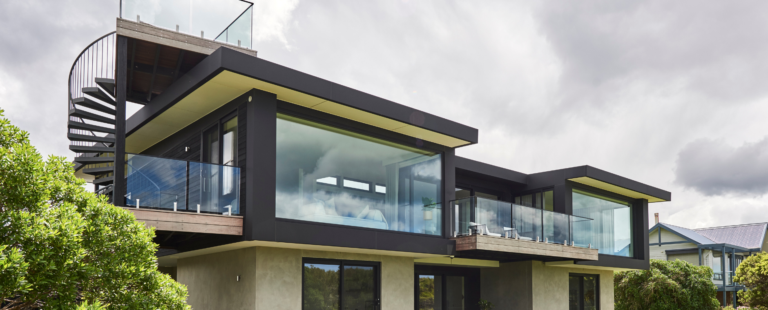

Dangerfield Home

  • Home Inspo, Residential
feature_51_hero

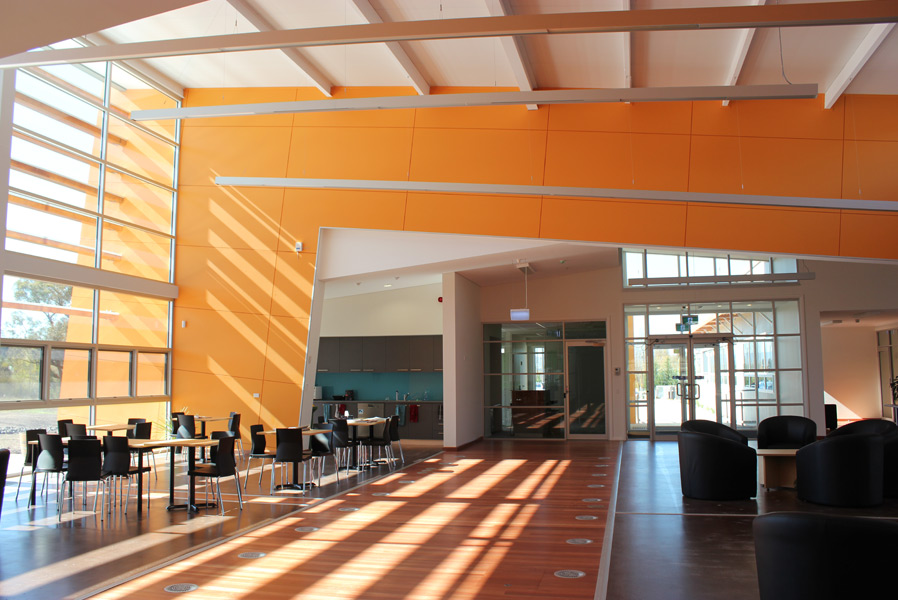

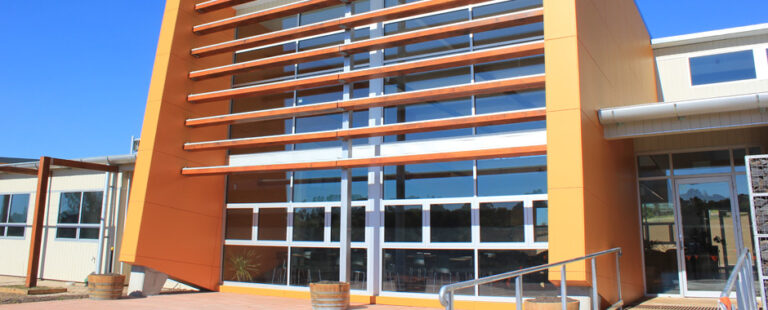

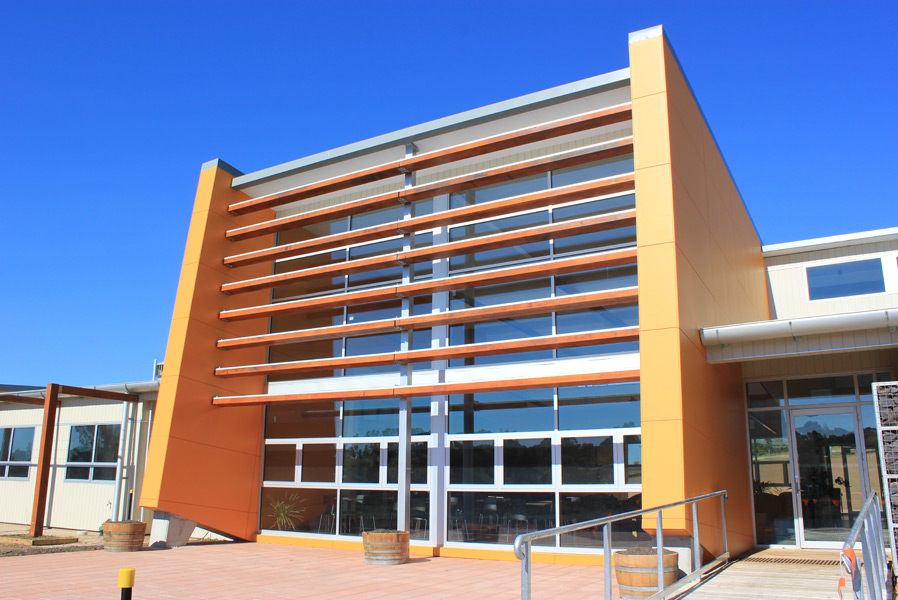

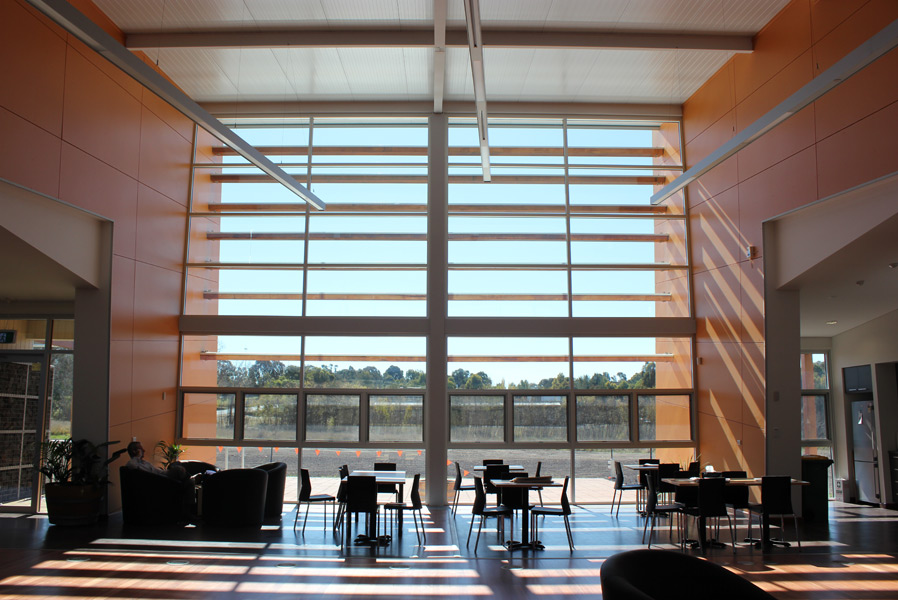

The Flannery Centre
