Thermally Broken Door System

Summary

Commercial, Residential

Series 852

Thermally Broken Door System

Bring the outside in, with secure, elegant and energy efficient, ThermalHEART™ sliding doors.

Thank you for reading this post, don't forget to subscribe!
  • The 852 is available as a hinged door, pivot door and a sliding door.
  • ThermalHEART™ sliding doors minimise heat or cold transfer, and provide excellent energy efficiency.
  • Ideal for commercial and high-end residential applications, you can choose between the heavy-duty bottom rolling stainless steel bearings or Centor top-hung rollers for a lighter, smoother operation.
  • Flexible design options allow you to use this great product as a single sliding door or stacking sliding door where wider openings are preferred. It can also be configured as a hinged or pivot door.
  • Complement your sleek new sliding doors and protect your home from creepy-crawlies with the finger light, retractable Centor Eco Screen which retreats into the door frame when not in use.

Product Details

Brochure
Care & Maintenance(For your Windows & Doors).pdf

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Hardware(For Windows & Doors).pdf

Hardware(For Windows & Doors).pdf

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Panel Height* (mm)

    3000

  • Maximum Panel Width* (mm)

    1000H, 1200P & 2500S

  • Maximum Glass Thickness (mm)

    ≤ 28

*Maximum Panel Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range

    2.5-3.5

  • SHGC Range

    0.14-0.45

AS2047

Tested + Certified

BAL40

Tested + Certified

Energy
Efficient Design Solution

Livable
Housing Design

Key Features

  • Series 852 is an innovative thermally broken aluminiun commercial door system designed to complement the Elevate™ Commercial thermally broken CentreGLAZE™ and FrontGLAZE™ framing systems.
  • Incorporating ThermalHEART™ technology, Series 852 delivers excellent thermal performance and is ideal for commercial and high-end residential applications where minimising heat or cold transfer is desired.
  • To enable excellent thermal performance to be achieved, a “Thermal Break” is incorporated which separates the inside and outside elements of the frame providing an insulator to minimise the transfer of heat or cold between the elements.
  • This insulating strip is manufactured from polyamide and delivers the same structural properties as aluminium to ensure the integrity of the system is maintained.
  • Series 852 Commercial Door system incorporated fully beaded 50mm thick heavy duty door stiles and rails designed to accept 24mm IGUs.
  • We also offer a range of snap-on glazing beads to allow us to fit thinner glass – down to 4mm thick.
  • Door stiles have been designed to accept wide backset (34mm and 38mm) locks. The greater the backset the easier it is to access the key.
  • Double glazed hinged doors will be heavy and for this reason we have designed an adjustable heavy duty hinge.
  • Captive co-extruded glazing wedge option (illustrated) reduces the chance of vandalism.
  • Available as hinged, pivot and sliding panels.
  • Top and bottom rails are secured to stiles with heavy duty spigot fixed to thick backing plate with high tensile bolts.

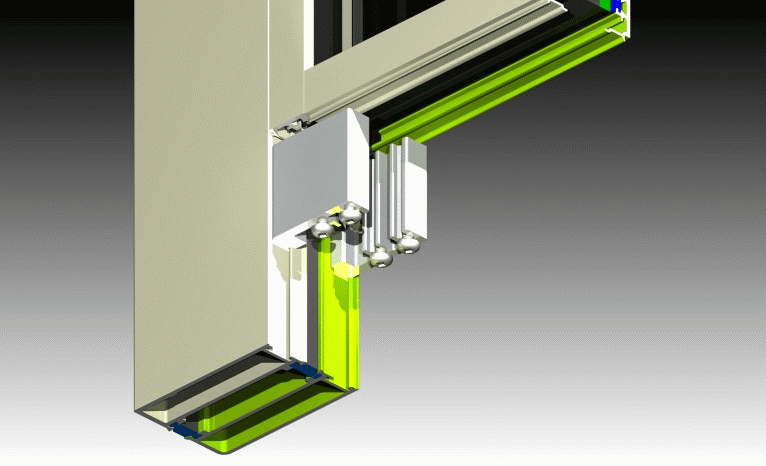

Tight Joints

Tight Joints

Custom heavy duty aluminium spigot and backing plate for tight joints between stiles and rails.

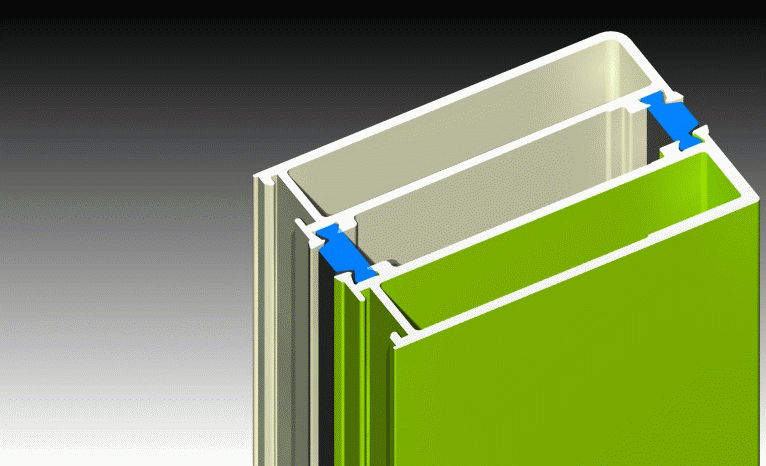

Accepts 28mm IGUs

Accepts 28mm IGUs

A range of glazing beads and wedges allow glass thicknesses from 4mm to 28mm.

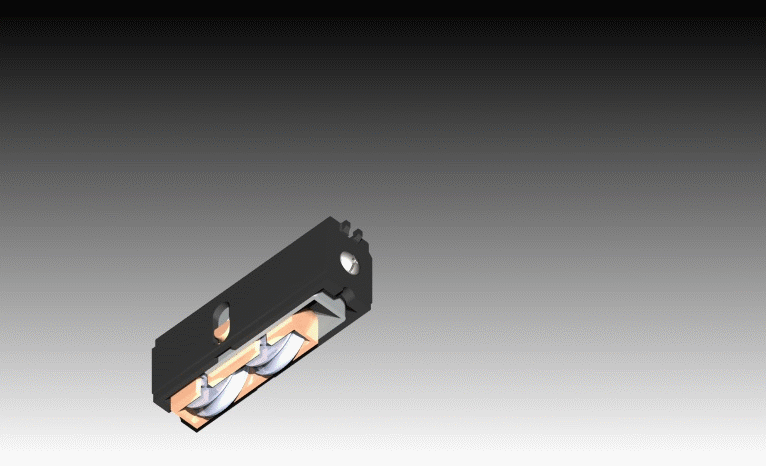

Centor E3 Rollers

Centor E3 Rollers

Custom roller supports heavy IGU's. Height can be adjusted via access hole in edge of stile.

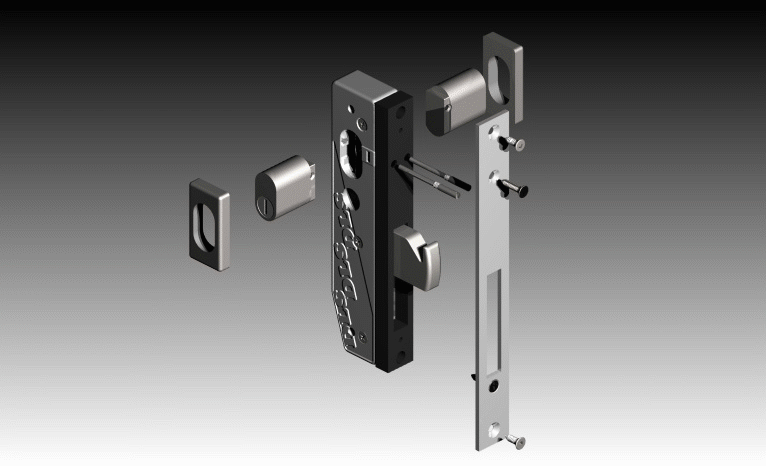

Mortice Locks

Mortice Locks

The wide stiles allow us to fit extra wide 34mm backset mortice locks.
